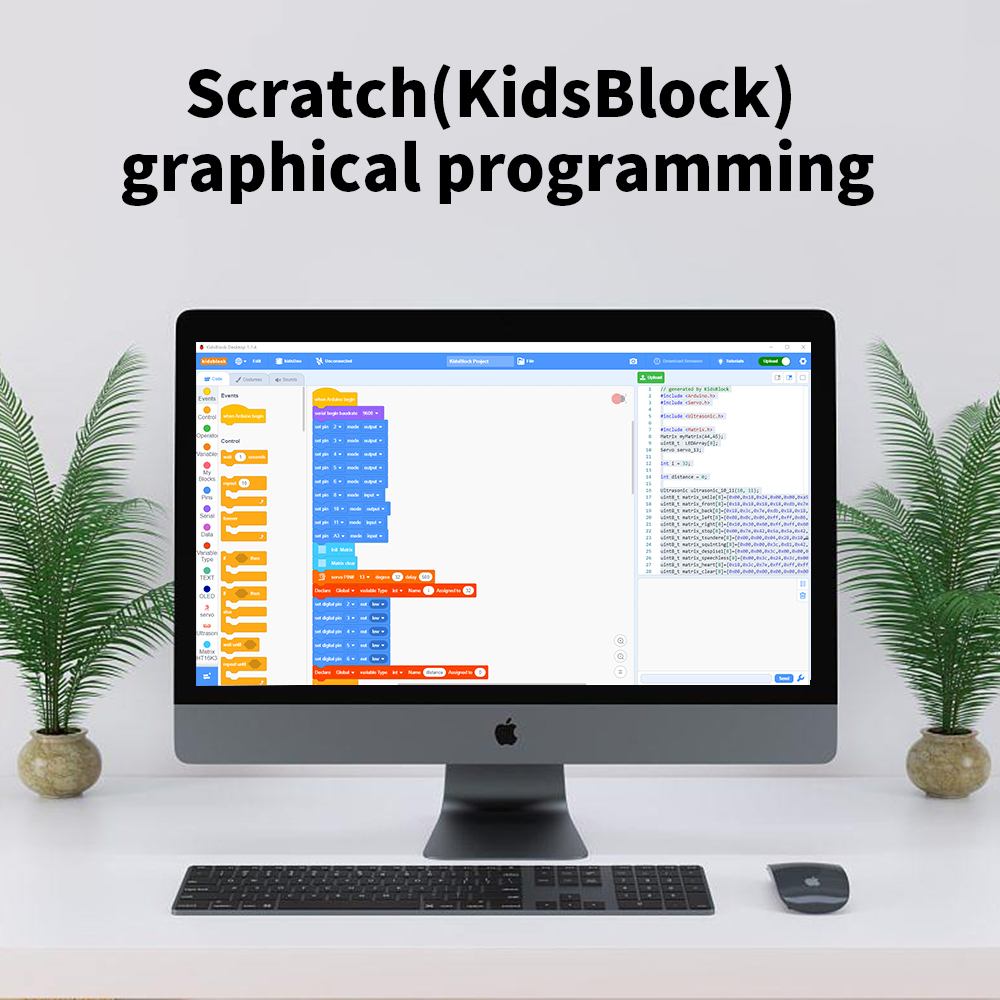

Just as important is that Scratch graphical programming software allows children to learn from the simplest codes and master systematic programming knowledge. Meanwhile, the Lego series can be used to build various shapes and inject some basic physics and mechanical knowledge to children,thus greatly boosting their logical analysis ability, creative ability, hands-on ability and problem-solving ability.
Parameters：

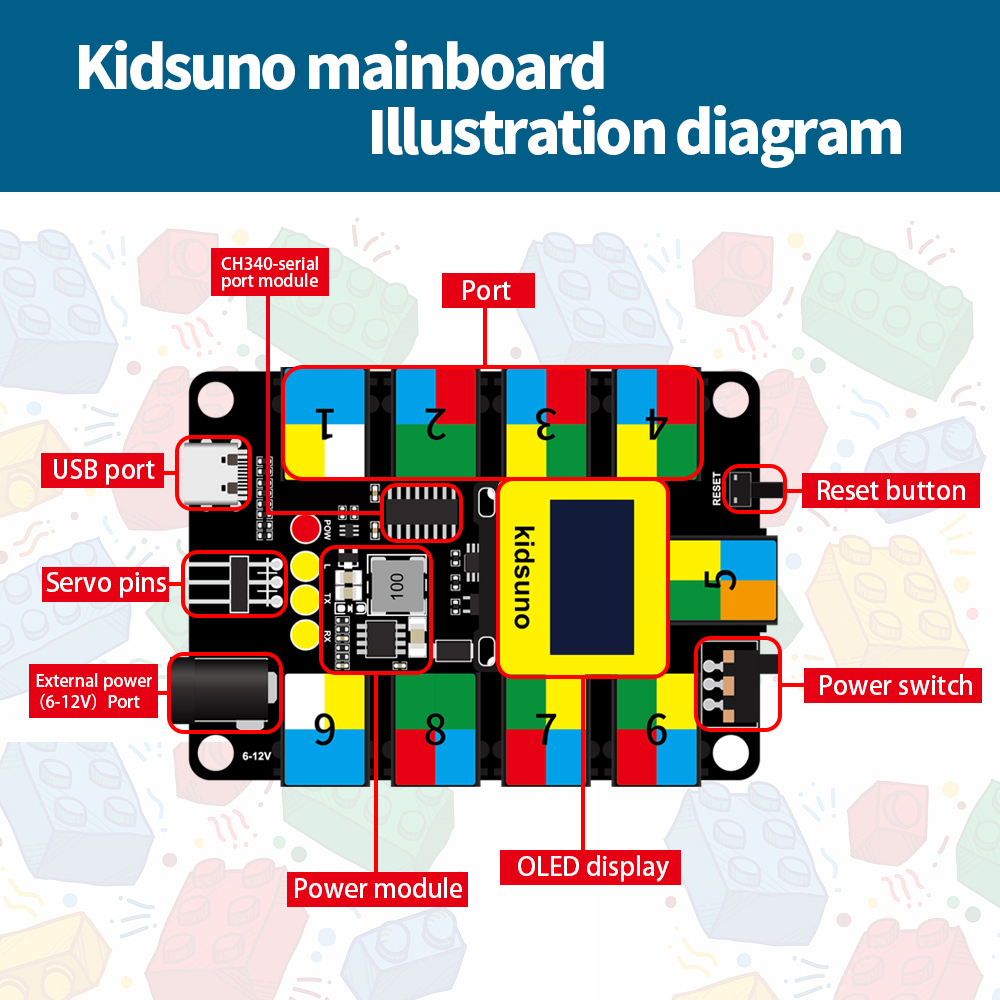

Microcontroller：ATmega328P
Operating Voltage：5V
Input Voltage：USB:5V, DC:6-12V
Digital I/O Pins：14(of which 6 provide PWM output
PWM Digital I/O Pins：6
Analog Input Pins：8（A4 and A5 as fixed I2C）
DC Current per I/O Pin：20mA
Flash Memory：32KB(ATmega328P)of which 0.5 KB used by bootloader
SRAM：2KB(ATmega328P)
EEPROM：1KB(ATmega328P)
Total Current：The max output of USB power supply is 400mA，and DC is 1.6A
Max Power：8W
Clock Speed：16MHZ
Dimensions：87.5mm×60mm×20mm
Weight：37g(without housing)
Operating Temperature Range：-10°C~50°C
Tutorial https:https://wiki.kidsbits.cc/projects/KD3017/en/latest/docs/index.html
