Tutorial : https://wiki.kidsbits.cc/KD0006/

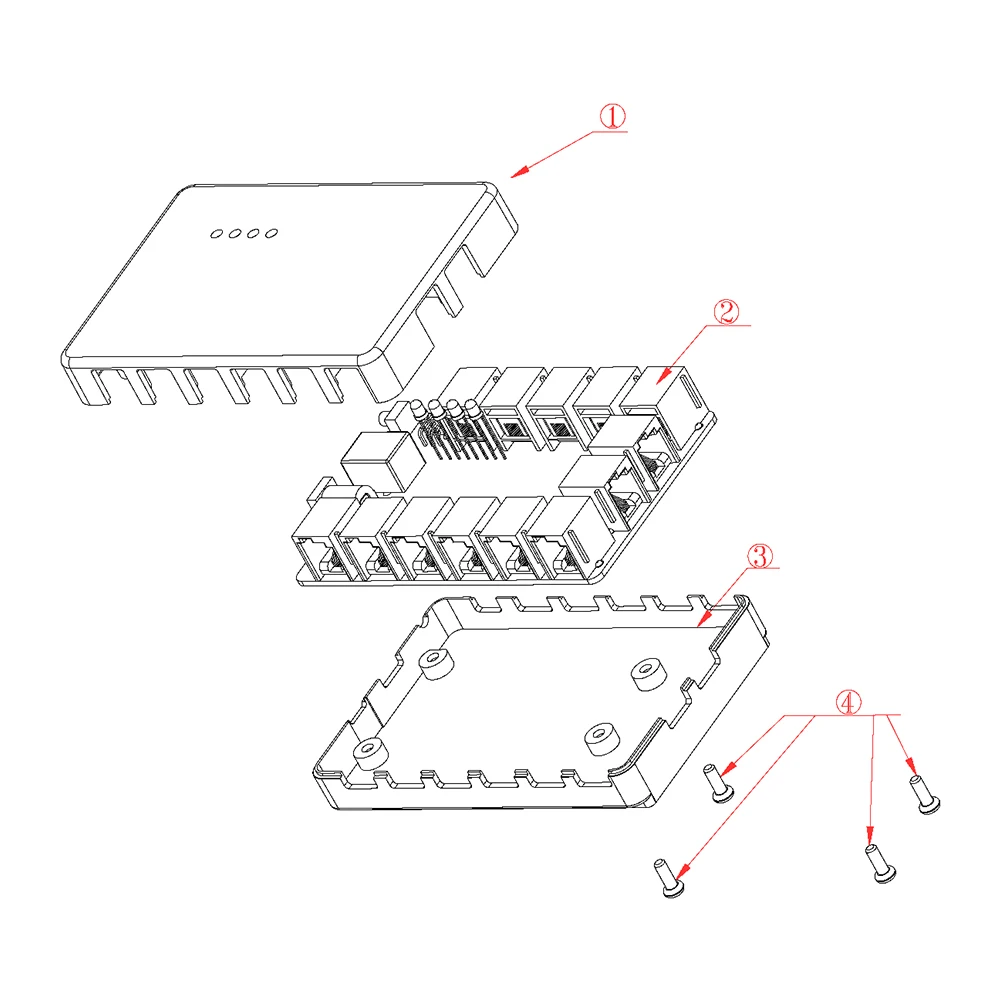

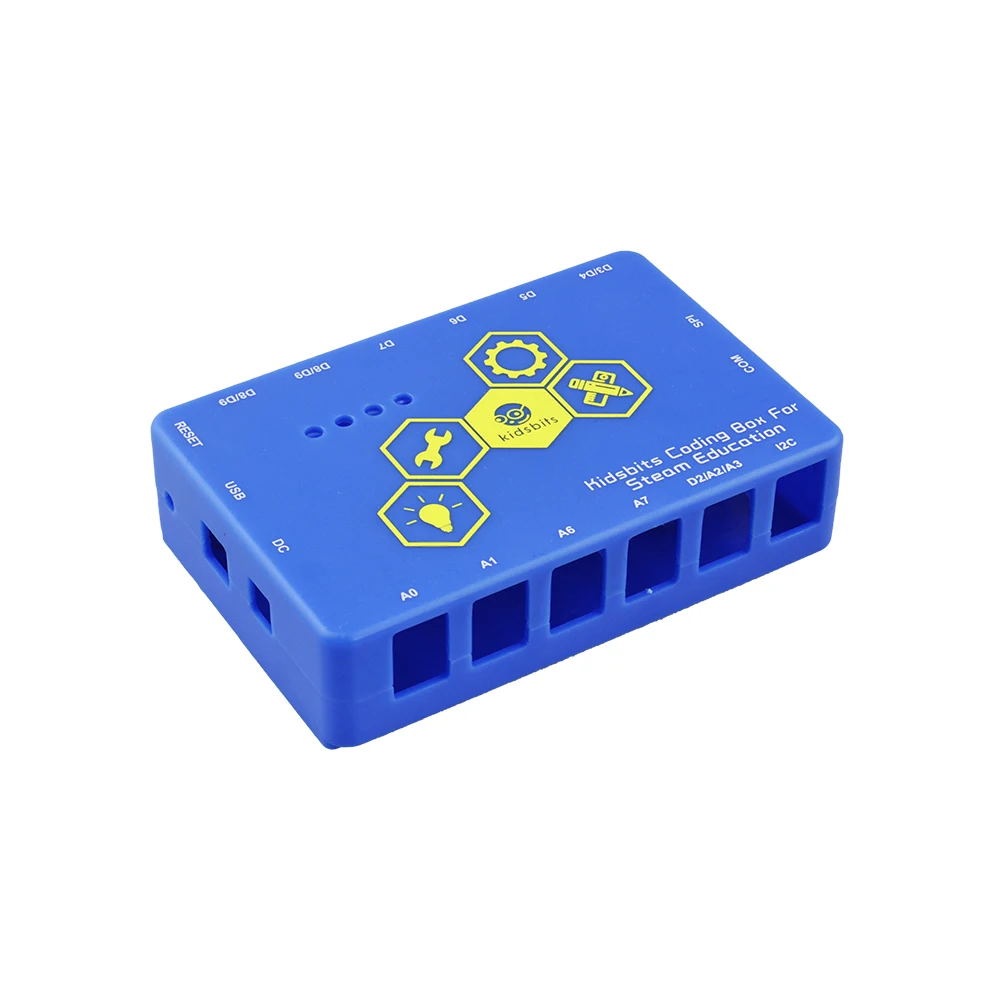

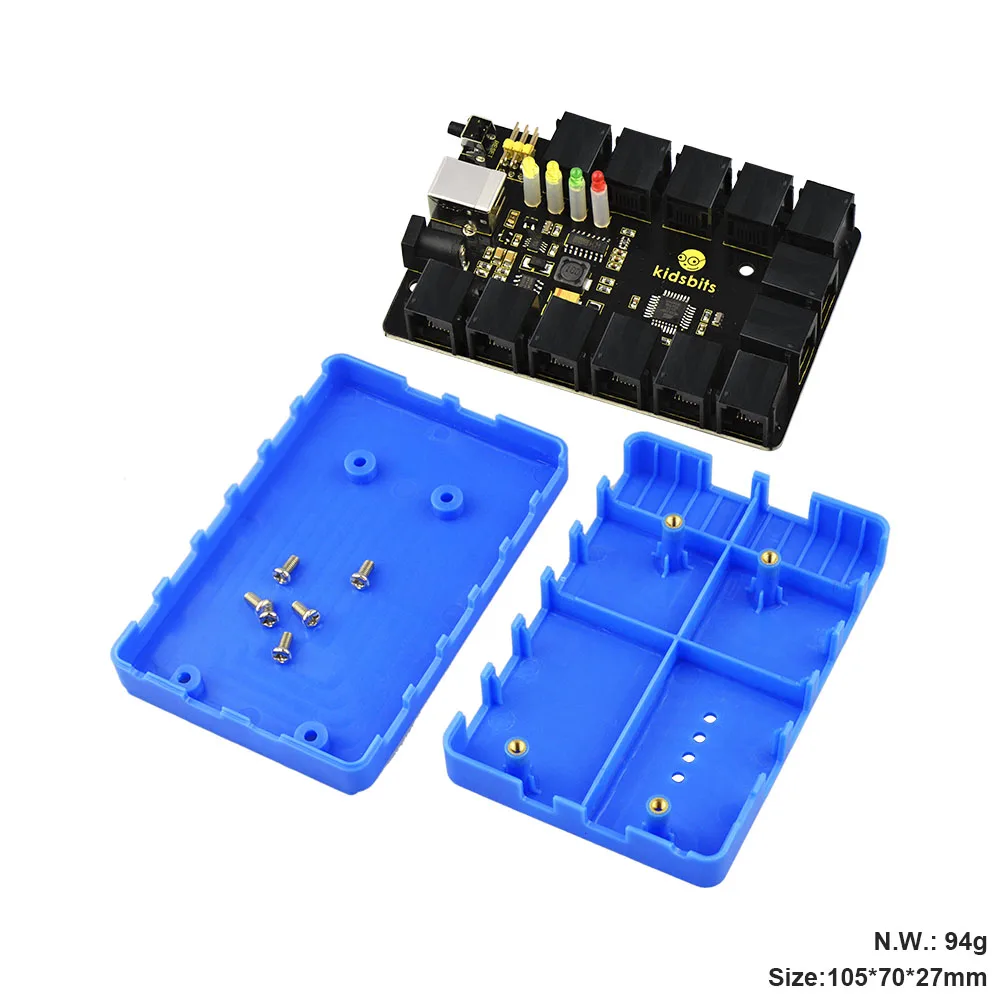

When doing DIY experiments, you might often connect the control board and each sensor module using a bunch of breadboard wires or jumper wires. It is really troublesome.Now, we specially design this kidsbits coding box, fully compatible with the building blocks.

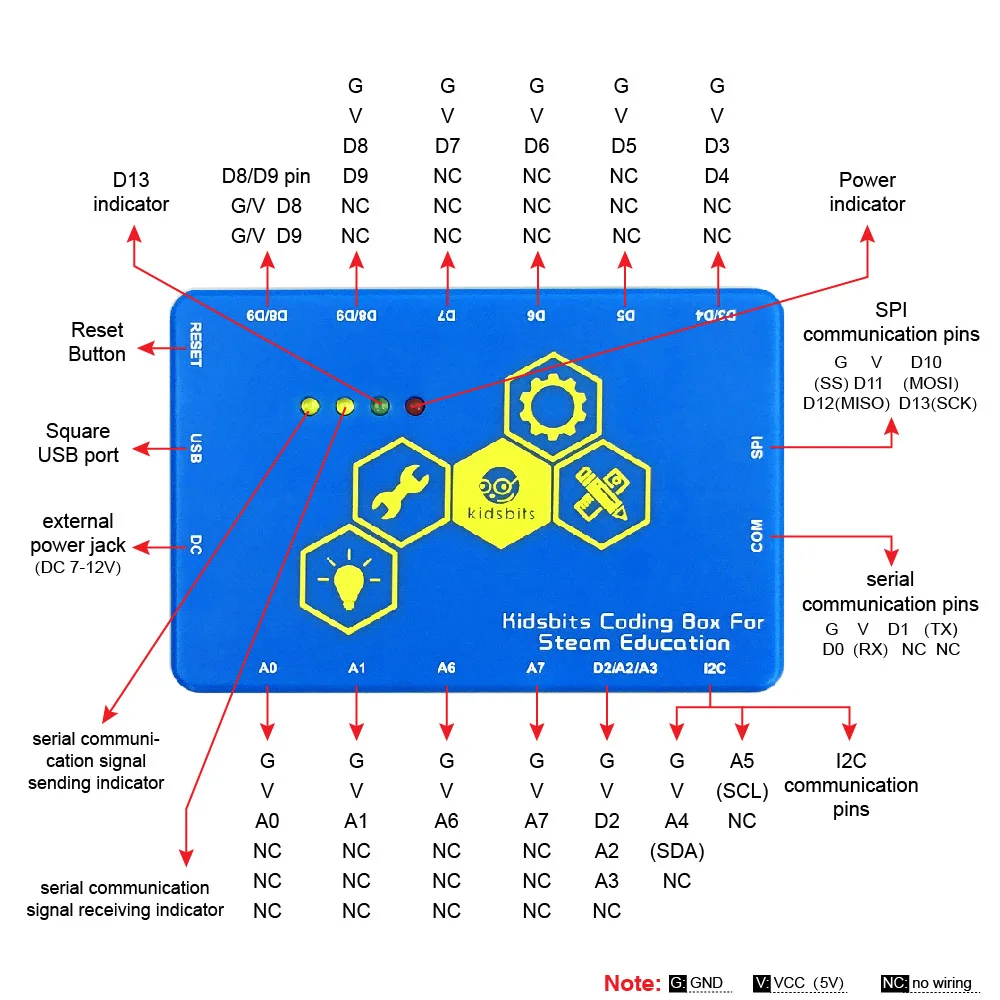

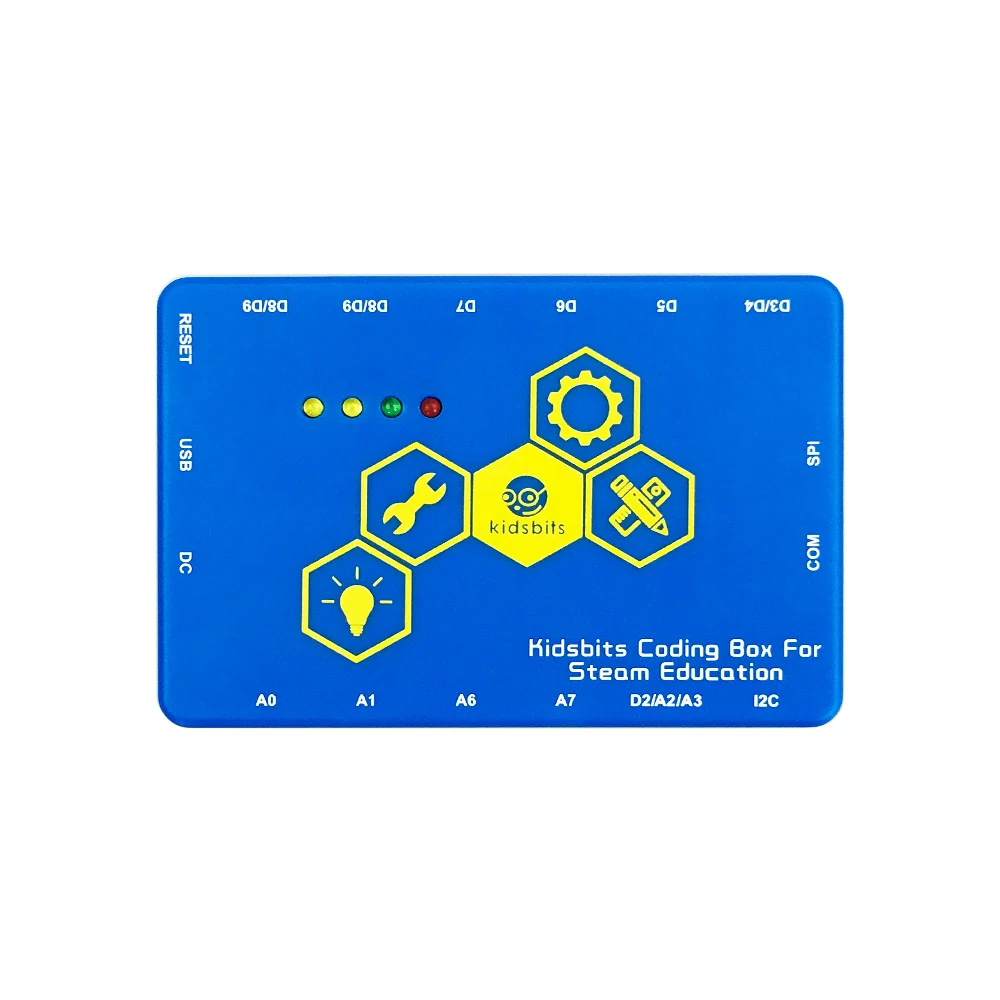

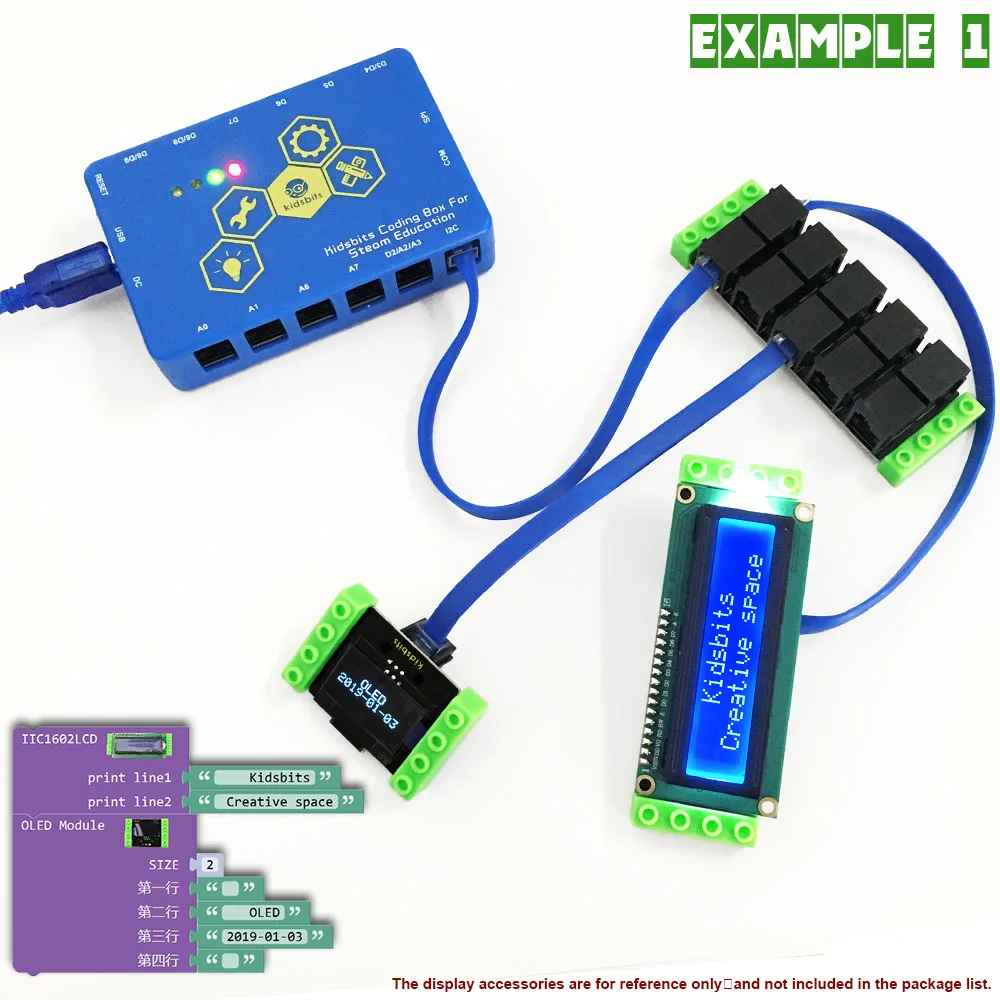

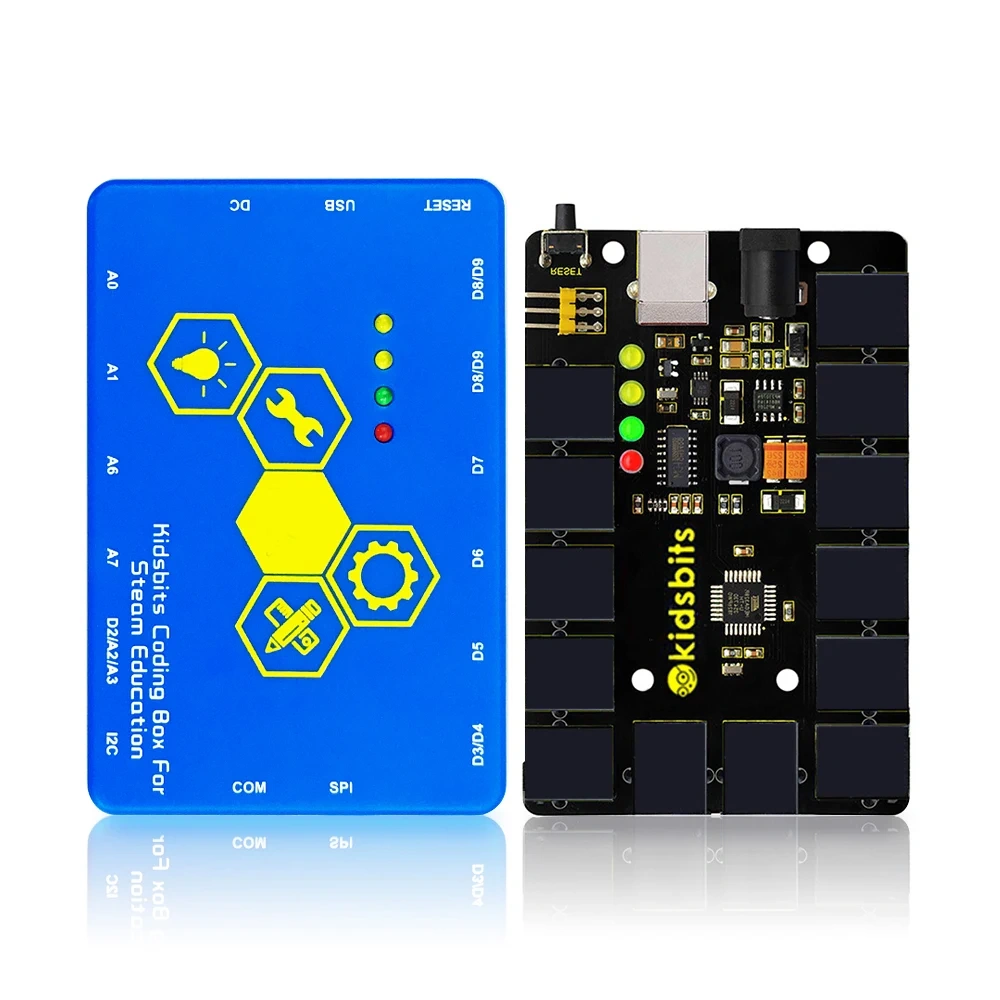

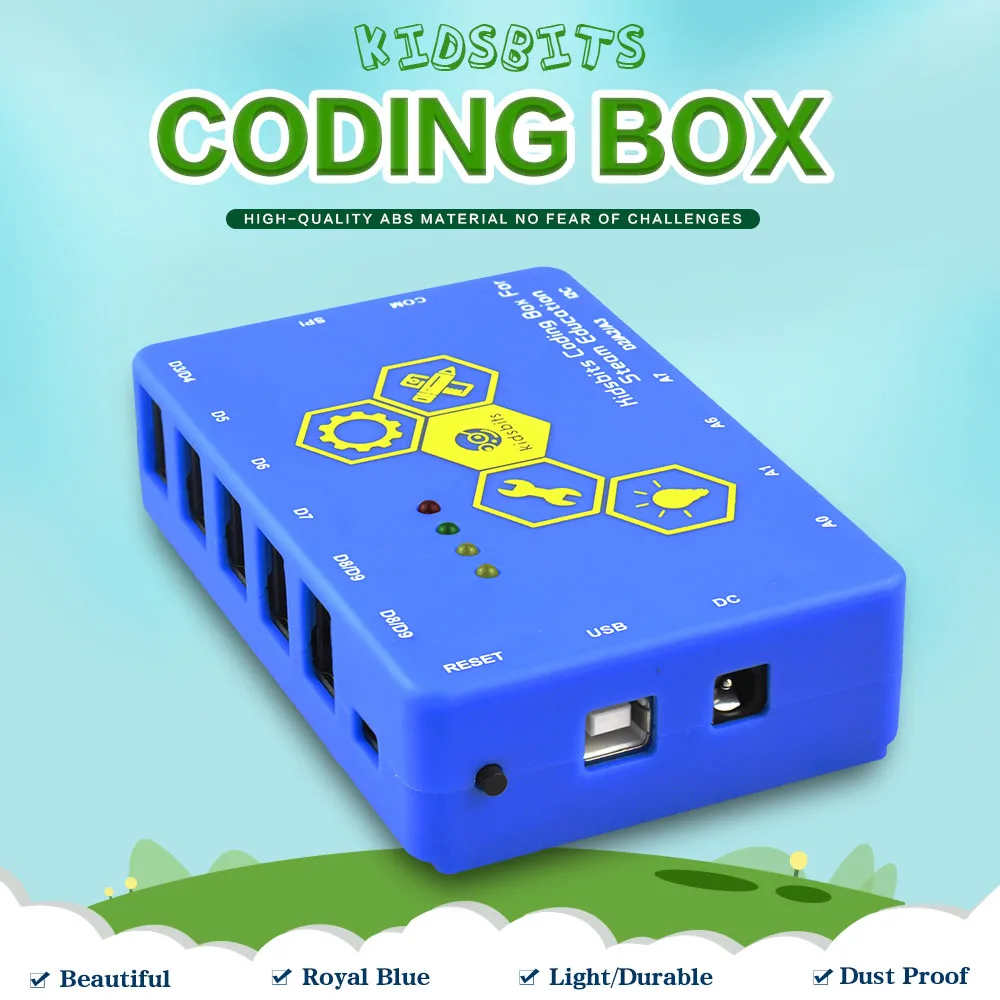

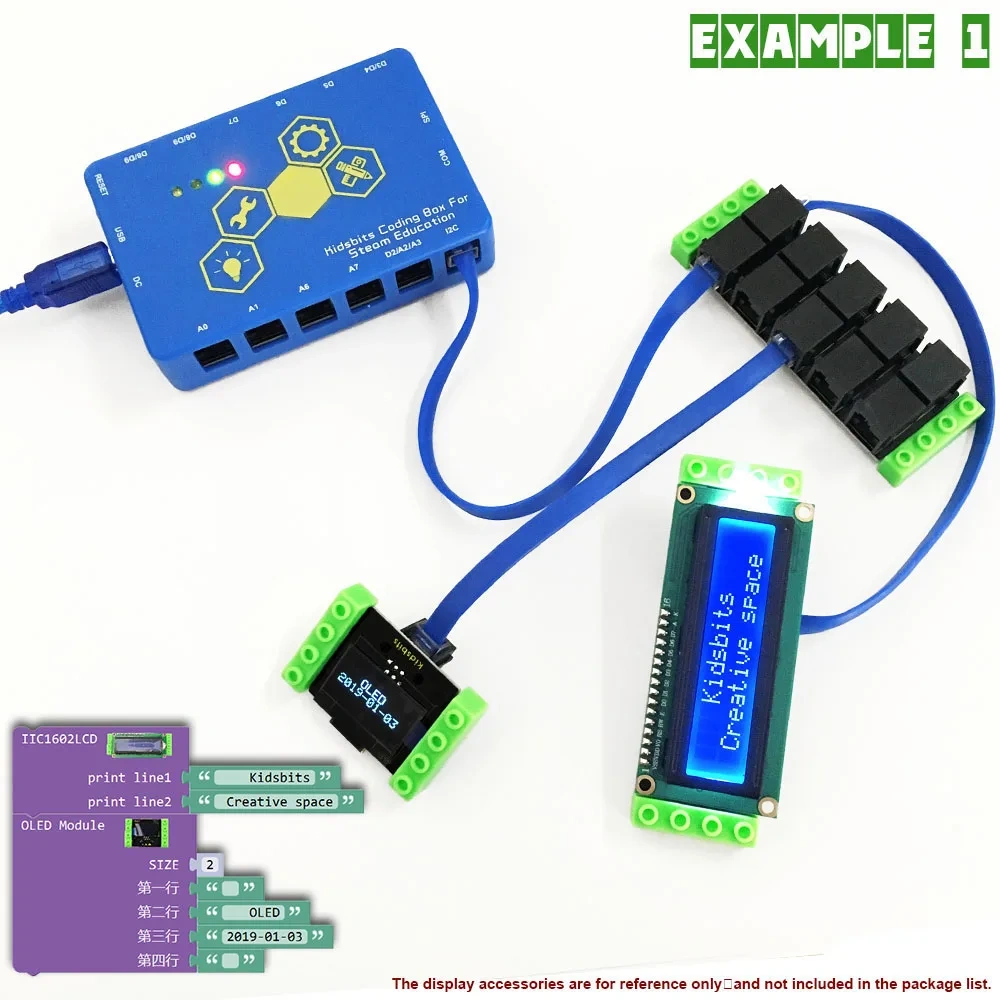

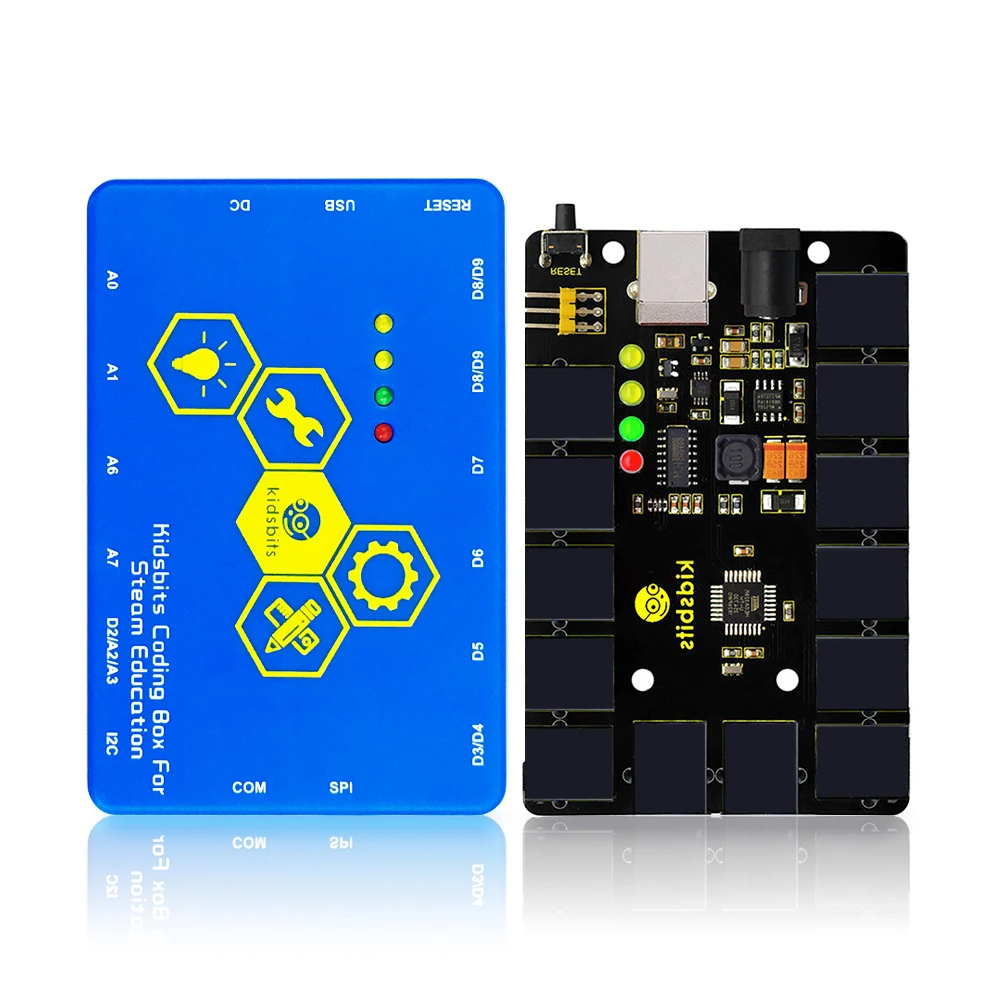

You can mount the control box onto blocks and match our kidsbits sensor modules to complete all kinds of entertaining experiments.The kidsbits coding box comes with EASY plug interfaces. So you are able to connect other sensor modules using only an RJ11 cable.You can tinker with your control board and sensor modules without worrying too much about doing something wrong.The box also comes with control interface with silkscreen, four LED indicators DC power jack, USB port and so on.
Special Note:
The control board is equipped with the RJ11 6P6C interface, can use with our sensor/module with RJ11 6P6C interface.
If you have sensor/module of other brands, it is also equipped with the RJ11 6P6C interface but has different internal line sequence, can’t be used compatibly with our control board.

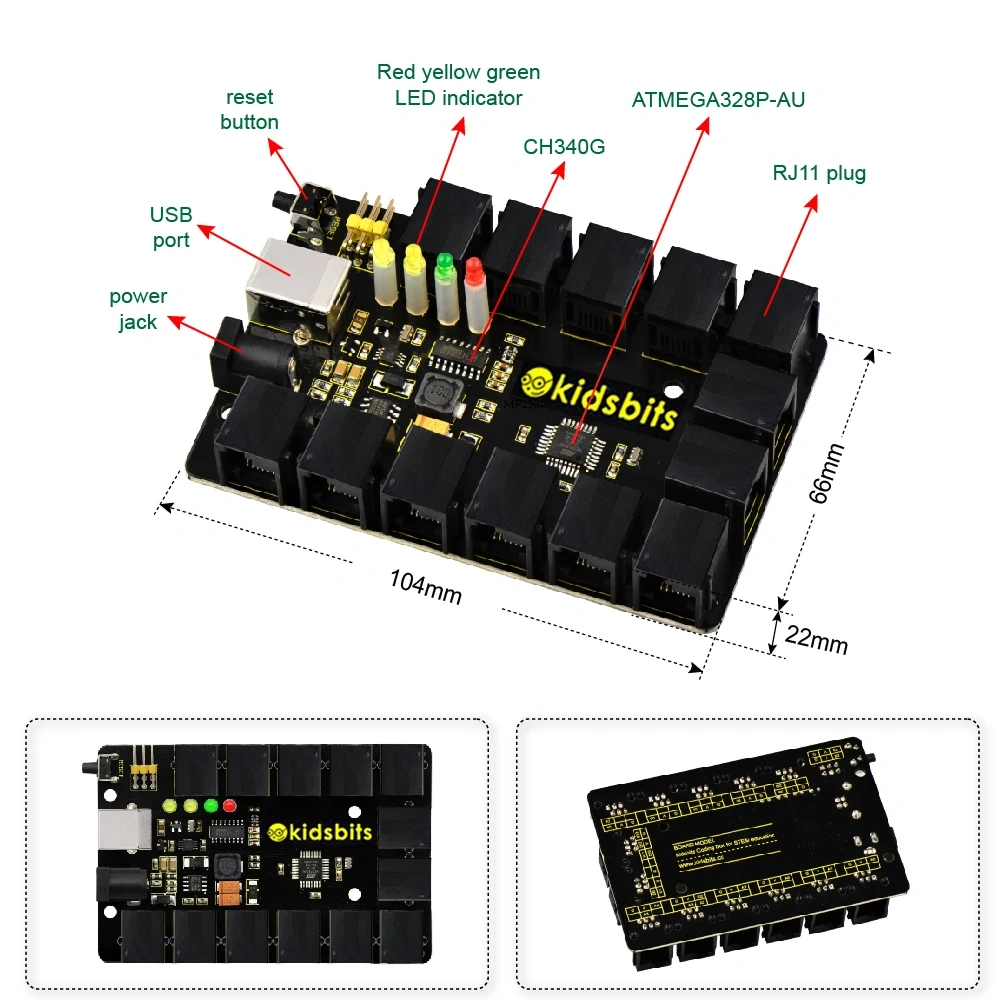

Technical Details
Main Chip: ATmega328P-AU
Operating Voltage: +5V
External Power: DC 7-12V
Interface: RJ11 6P6C
